Product Introduction

P28 series honing tools are used for15.72-25.40mm (.619''-1.000") diameters, lengths are less than 5 times diameters.

For example

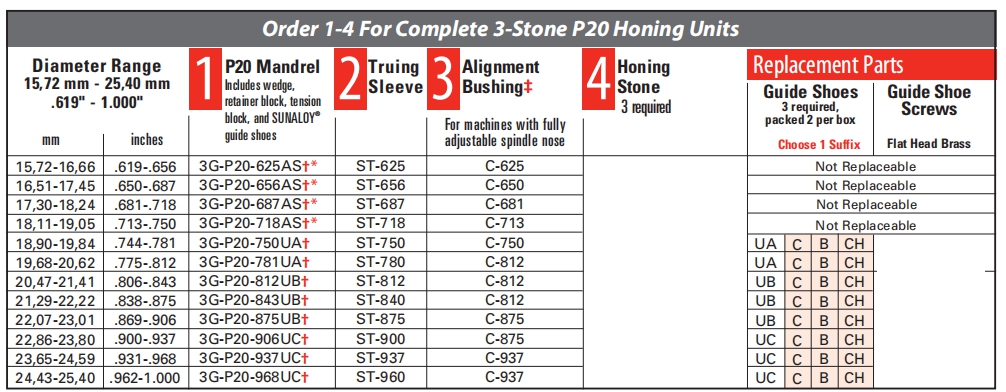

2G-P20-625AS: mandrel without replaced shoe guides

2G-P20-750UA+C: mandrel with hard carbide shoe guides
2G-P20-750UA+B : mandrel with bronze shoe guides

2G-P20-750UA+CH : mandrel with hard steel shoe guides


P20DM45: P20 is P20series stone, DM is diamond abrasive, 4 is 150 grit abrasive size, 5 is level 5 hardness.

For longer length, we could make custom mandrel as your workpiece.
Contact with us to get the right codes for your workpieces.
