Product Introduction

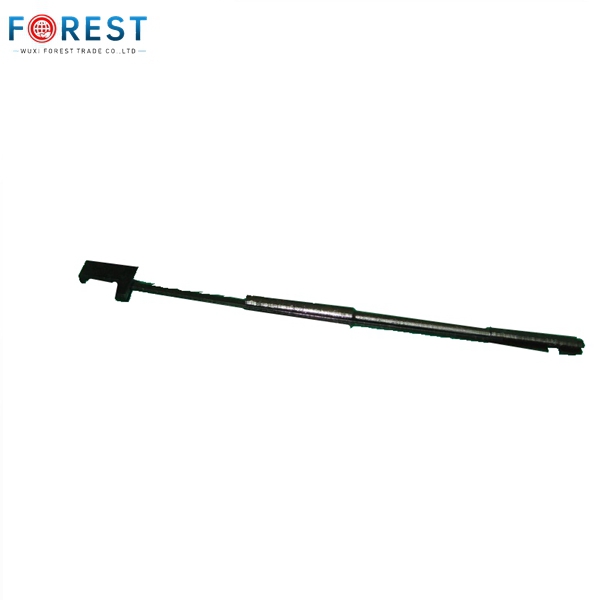

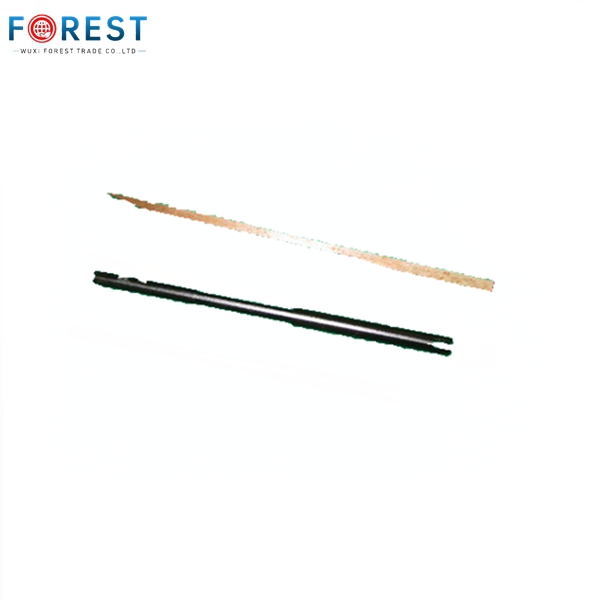

L6 series honing tools are used for 4.7-6.22mm mm( .185"–.245") diameters, lengths are less than 5 times diameters.

These tools can be used in SUNNEN honing machines and our H series honing machines. We also could use portable hone tools to make some repairing working.

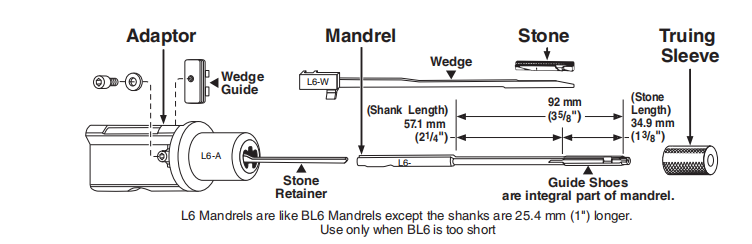

BL6 and L6 series are different in the shank lengths.

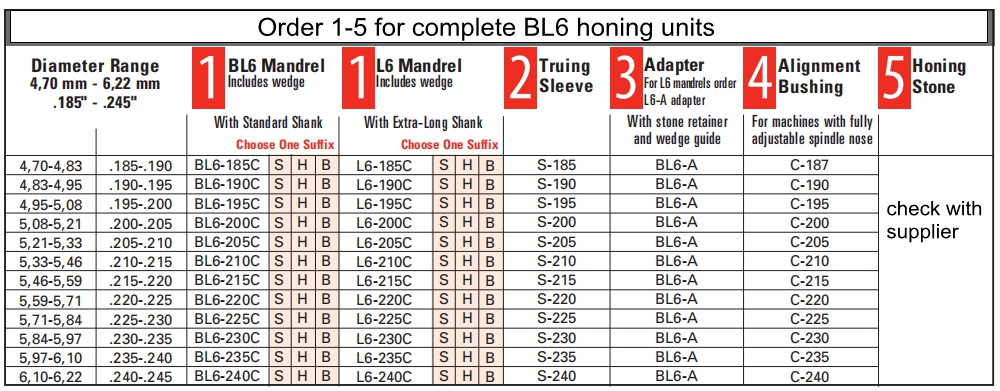

For example

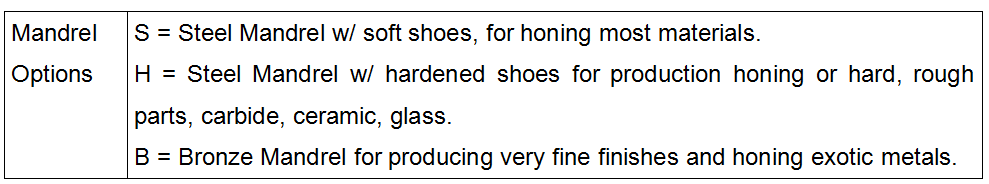

BL6-185CS : Soft material mandrel
BL6-185CH :Hard material mandrel
BL6-185CB : Soft bronze material mandrel
L6-185CS : Soft material mandrel
L6-185CH :Hard material mandrel
L6-185CB : Soft bronze material mandrel

L6DM45: BL6 is L6 series , DM is diamond abrasive, 4 is 150 grit abrasive size, 5 is level 5 hardness.

For longer length, we could make custom mandrel as your workpiece.
Contact with us to get the right codes for your workpieces.
