Product Introduction

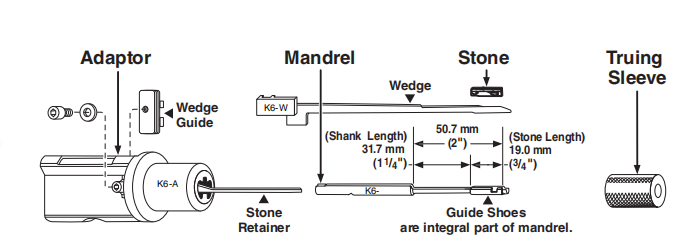

K6 series honing tools are used for 4.7-6.22mm mm( .185"–.245") diameters, lengths are less than 5 times diameters.

These tools can be used in SUNNEN honing machines and our H series honing machines. We also could use portable hone tools to make some repairing working.

K6 and JK6 series are different in the shank lengths.

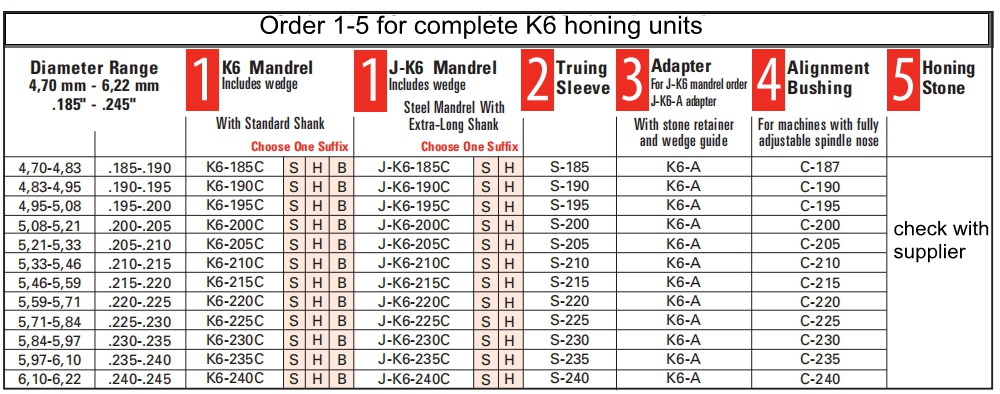

For example
K6-185CS : Soft material mandrel
K6-185CH :Hard material mandrel
K6-185CB : Soft bronze material mandrel
JK6-185CS : Soft material mandrel
JK6-185CH :Hard material mandrel
JK6-185CB : Soft bronze material mandrel

K6DM45: K6 is K6 series , DM is diamond abrasive, 4 is 150 grit abrasive size, 5 is level 5 hardness.

For longer length, we could make custom mandrel as your workpiece.
Contact with us to get the right codes for your workpieces.
