Product Introduction

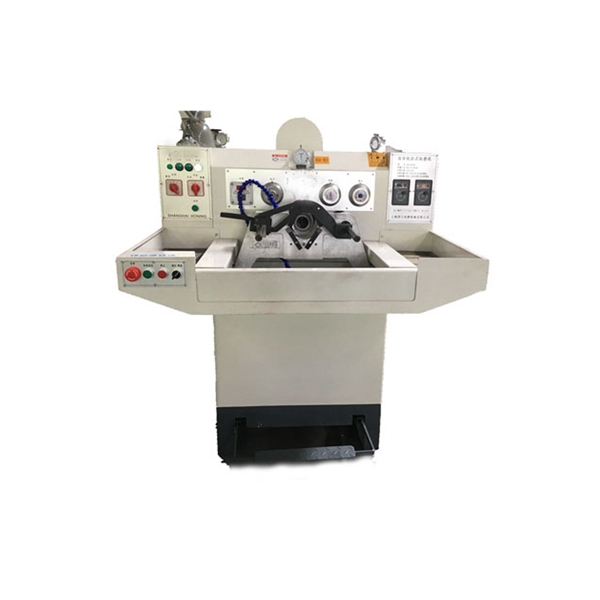

This honing machine could hone small holes in mass production. Widely used in coupled parts of diesel (oil pump nozzles), such as oil outlet valves, plunger sleeves, nozzles, shift forks, roller bodies, pistons, etc.; inner hole honing of various sewing machine small parts such as connecting rods, rocker arms, copper bushings, etc.; pneumatic Small cylinders, pistons, blind hole cylinders, etc. in the tool industry; various motorcycle gears, cylinder blocks, connecting rods, bushings, etc. Valve sleeves and valve bodies in the hydraulic industry; wind instruments; high-precision honing of inner holes of military parts; cylinder blocks and small connecting rods of agricultural machinery and garden machinery; inner holes of various small gears; mold guide sleeves, sliding sleeves, etc.; ceramic bearings , Honing processing of various ceramic inner holes; graphite mold inner hole; tungsten steel mold inner hole; bearing inner hole.
Machine Parameters
|
NO |
Items |
Description |
|
1 |
Model |
FWH-2004 |
|
2 |
Pore diameter range: |
φ2.55—φ40mm |
|
3 |
Rotation speed of spindle |
250-2500 rpm, frequency variable speed regulation |
|
4 |
Stroke length |
10-200mm stepless |
|
5 |
Spindle motor |
1.5 KW |
|
6 |
Stroke speed |
80-400 strokes per minute, frequency variable speed regulation. |
|
7 |
Stroke motor |
power: 0.75Kw, reduction gear ratio: 10:1, frequency variable speed regulation and brake. |
|
8 |
Cooling pump |
AB-25, 90w, 25 l/min. |
|
9 |
Total power supply: |
3.2Kw |
|
10 |
Working capacity of cooling tank: |
120 L (lower limit of honing oil) -130 L (upper limit of honing oil) |
|
11 |
Overall dimension (L x W x H): |
1350X1040X1367mm |
|
12 |
Power supply: |
3 phase, 380V, 50Hz |

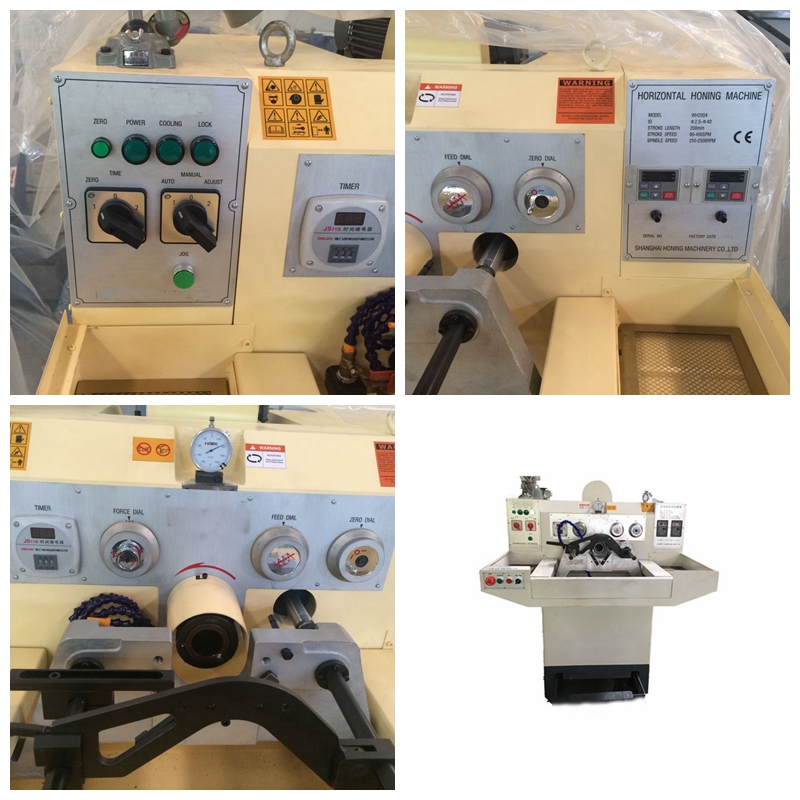

Machine Feature
★ Machine structure is mechanical ,make the machine stable quality,easy to maintain
★ Workpiece fixture is simple structure to supply good capacity.
★ Spindle and stroke use inverters to control, have good precision.
★ Stronge dual guide rails support to supply parallel stroke moving.Make machine have long lifetime.
★ The machine have mechanical Zero stop---set finished size , when size is the set size ,machine would stop working.
★ Time honing ----set time , time go off ,machine stop.
★ With several steps with honing tools, could get 0.001mm roundness，straightness would be 0.001mm，Size accuracy could be in 0.005mm
