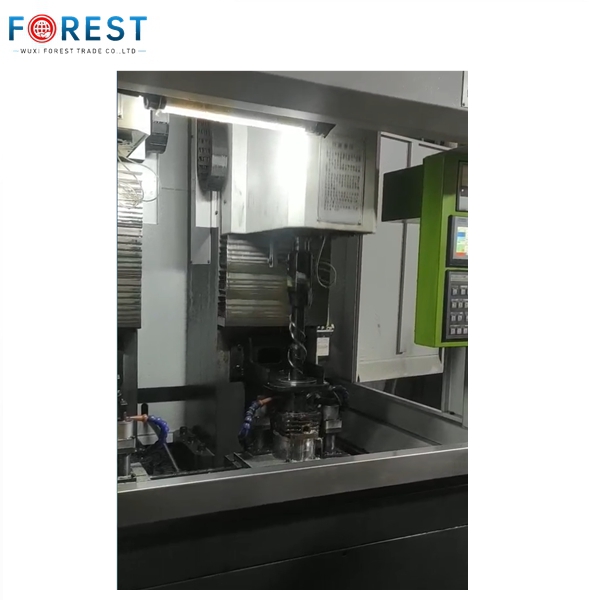

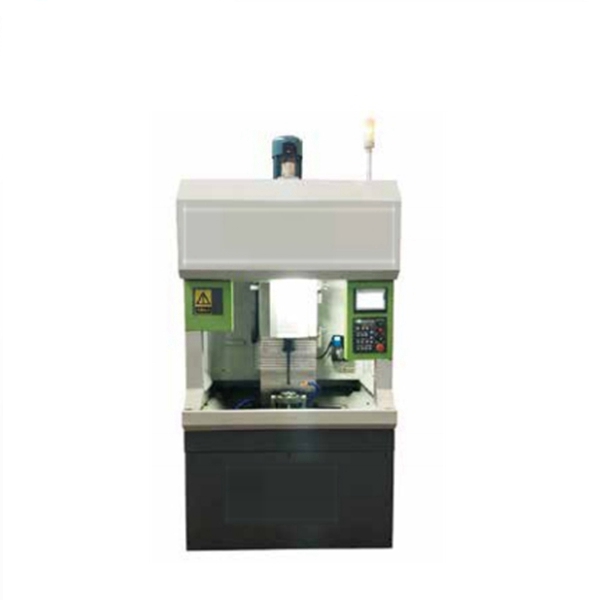

CNC vertical honing machine

NO

Items

Parameters

1

Model

FJYHM4250-1-1

2

Honing diameter range

Φ6-50mm

3

Stroke length

350mm

4

Max stroke speed

25m/min, adjustable

5

Stroke motor

3.7KW, Servo motor

6

Spindle motor

5.5 KW, Servo motor/Frequency Inverter

7

Spindle speed range

80-1500 r/min

8

Number of spindle

1

9

Honing head feeding way

Quantitative/Constant pressure

10

Honing head feeding unit

0.1 um

11

Power supply

380V, 50HZ, 3 phase or customized

12

Machine dimension

1500*1530*2500mm

13

Machine weight

3.0 tons
