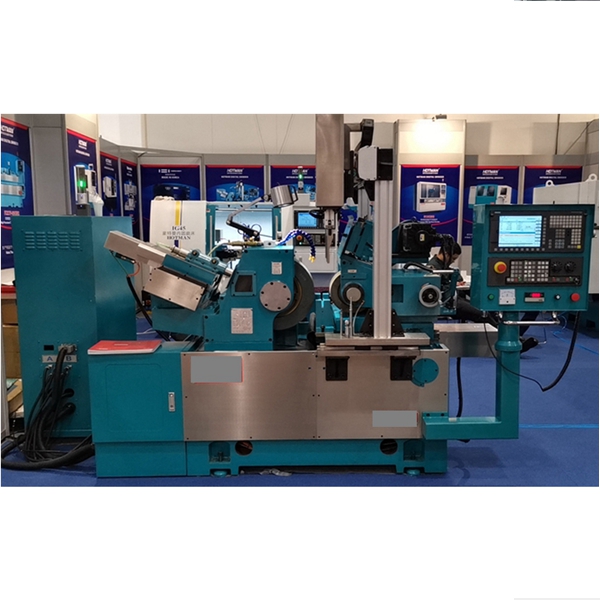

High Precision CNC Centerless Grinder Machine

Product Introduction

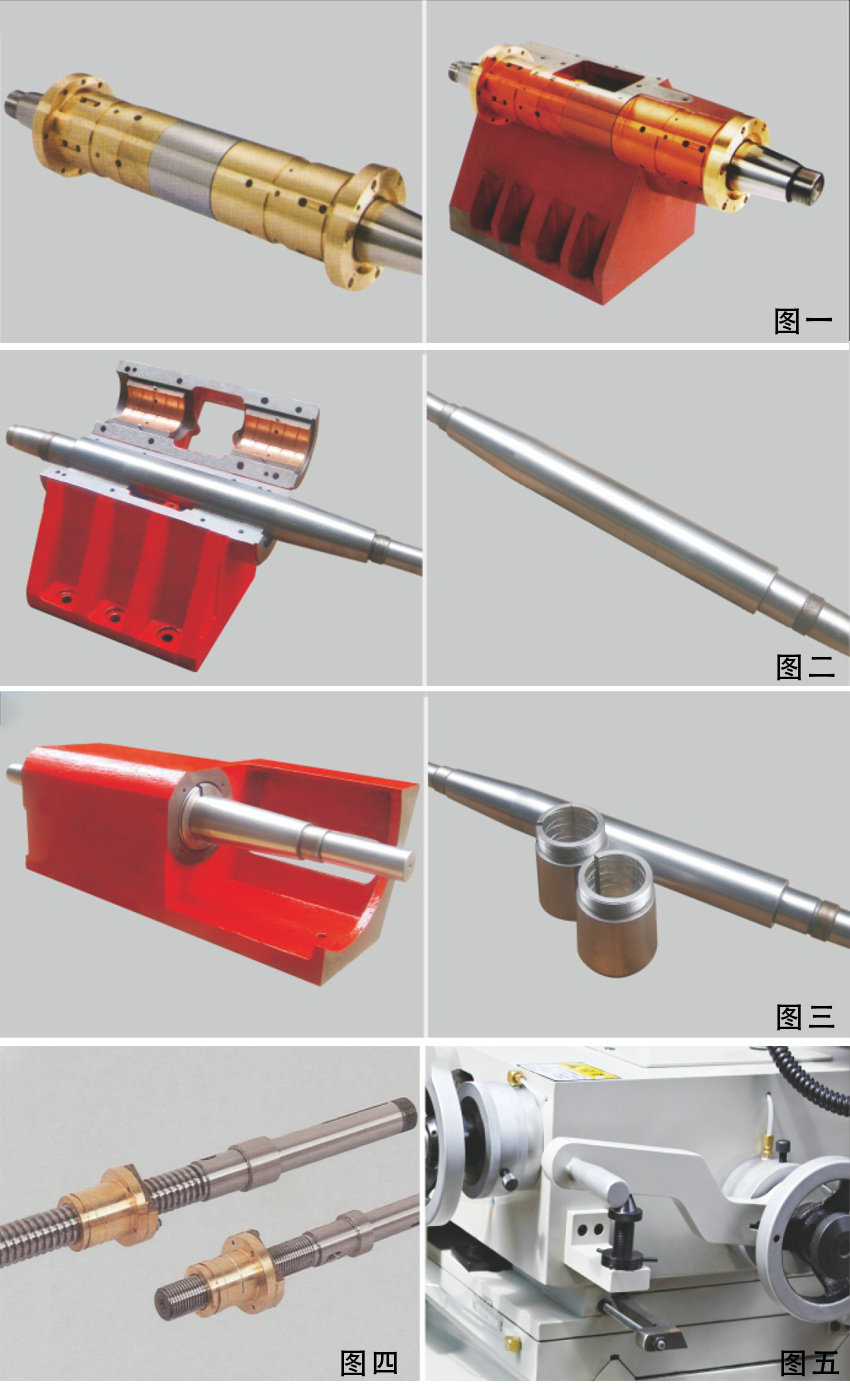

1. The base of the centerless grinder is made of high-grade cast iron FC30, with double V-shaped slide rail design. The fine adjustment of the up and down feed can reach 0.001mm.

2. The grinding wheel dressing device can be adjusted by ±6°, and the interface between the workpiece and the adjusting wheel is precise.

3. Complete optional equipment to improve operation function and convenience.

4. The machinery has undergone strict testing and quality control to ensure excellent performance. Precision and low failure rate.

NO	Model	FX-18S	FX-18CNC
1	Grinding diameters	Φ1-Φ60mm	Φ1-Φ80mm
2	Grinding wheel size( ODWID)	Φ455205228.6mm	Φ510205254mm
3	Guide wheel size ( ODWID)	Φ255205111.2mm	Φ305205127mm
4	Grinding wheel speed	1520 RPM	1350 RPM
5	Guide wheel speed	0~250RPM	0~250RPM
6	Grinding wheel driving motor	15HP	20HP
7	Guide wheel driving motor	3.0KW AC servo motor
8	Oil pump motor	2HP
9	Cooling pump motor	1/4HP
10	Guide wheel feeding handwheel	3.5mm/R, 0.05mm/scale
11	Guide wheel fine-turning handwheel	0.1mm/R, 0.001mm/scale
12	Worktable feeding handwheel	9mm/R, 0.1mm/scale
13	Worktable fine-turning handwheel	0.2mm/R, 0.001mm/scale
14	Trimming feeding handwheel	2mm/R, 0.01mm/scale
15	Guide wheel slope angle	+6°~-5°	+5°~-3°
16	Guide wheel rotate angle	±6°	±5°
17	Machinery size	2350x1960x1550mm	2550x2050x1650mm
18	Package size	2900x2400x1850mm	3050x2500x1250mm
