Diameter range :50-300mm
Stroke length : 1000mm
Control system: Siemens
Spindle Number: 1 PC

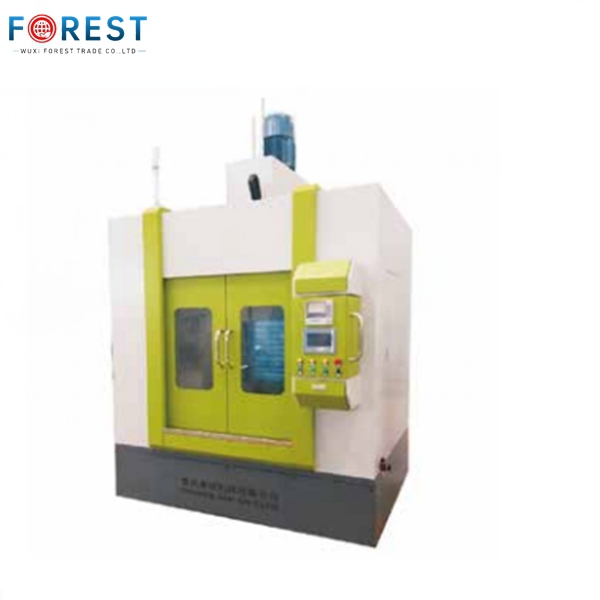

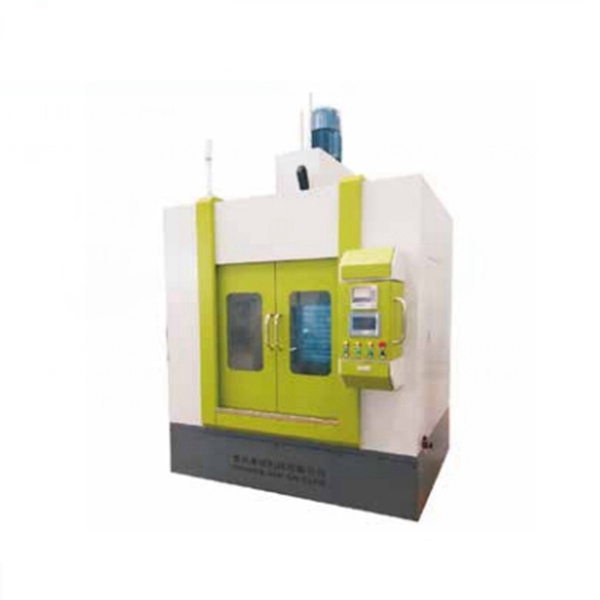

This type vertical machine is used for many workpieces, we have many models and accept custom prder.
Contact with us to get more details.
This machine is designed for some small holes workpiece, we could use expand honing head and single pass tools for different workpieces.
This machine is CNC control, could get good processing control for customers.
One spindle with two custom workpiece fixture stations for customers. This type machine uses one spindle to hone ,and two workpiece stations to move, if the workpieces are similar situation before honing, we can check the processing time for one pc, so that we can make it a small production line.
|

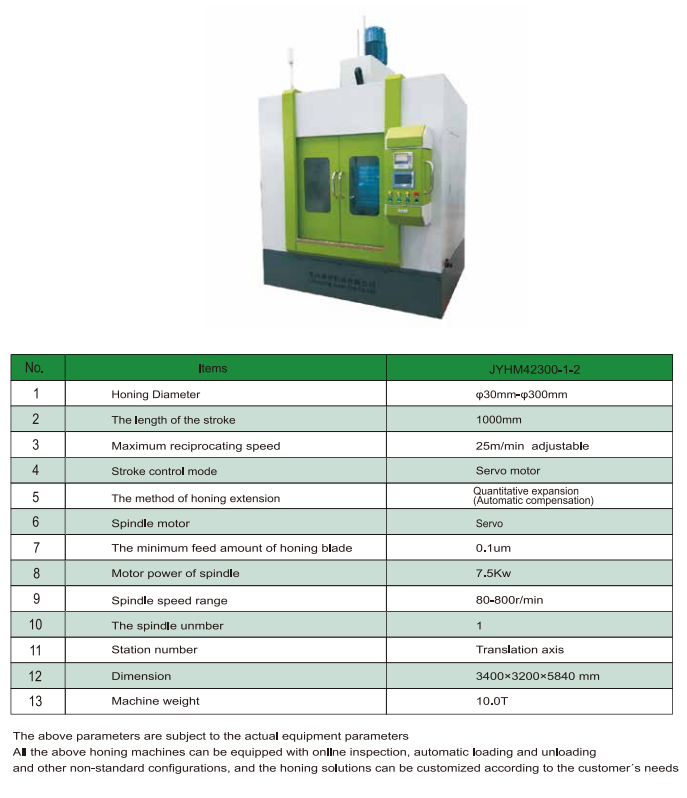

No. |
Items |
Parameters |
|
1 |
Model |
FJYHM42300-1-2 |
|
2 |
Honing diameter range |
φ50mm- φ300mm |
|
3 |
Stroke depth |
1000mm |
|
4 |
Stroke speed |
25m/min adjustable |
|
5 |
Stroke control type |
Servo motor |
|
6 |
Feeding type |
Quantitative /constant pressure |
|
7 |
Spindle motor |
Frequency inverter/ Servo |
|
8 |
Mini feeding unit |
0.1um |
|
9 |
Spindle motor |
7.5Kw |
|
10 |
Spindle speed |
80-1500r/min |
|
11 |
Spindle number |
1 |
|
12 |
Workpiece stations number |
Translation axis |
|
13 |
Machine dimenstion |
3400×3200×5840 mm |
|
14 |
Machine weight |
10 T |
