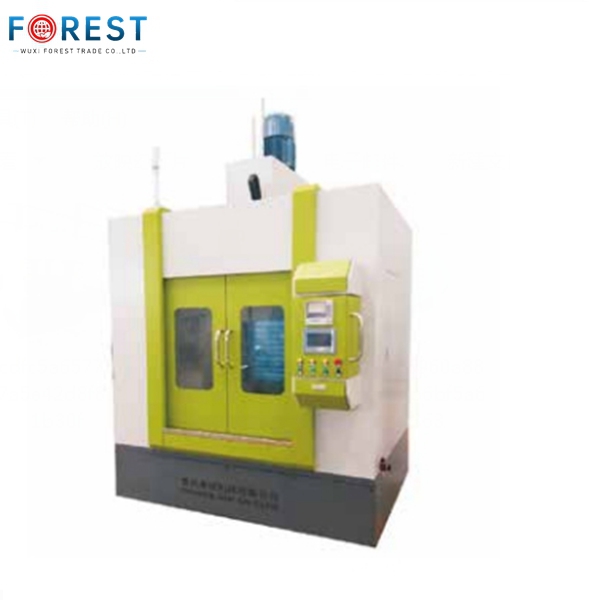

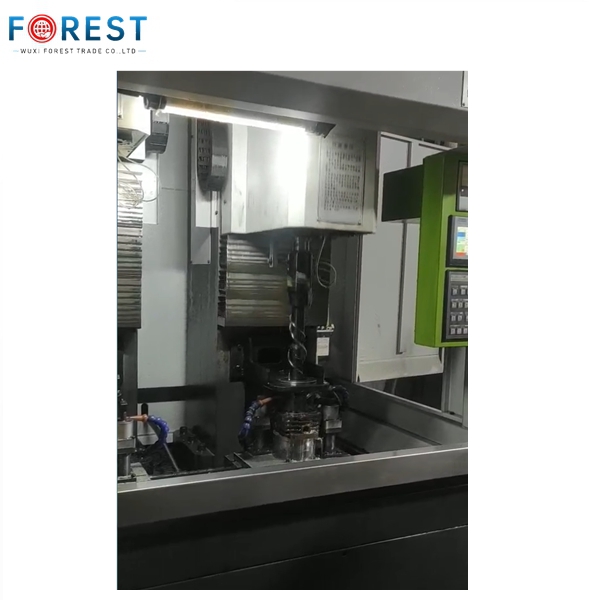

50-200mm Big hole honing machine

No.

Items

Parameters

1

Model

FJYHM42200-1-2

2

Honing diameter range

φ50mm- φ200mm

3

Stroke depth

1000mm

4

Stroke speed

25m/min adjustable

5

 Stroke control type

Servo motor

6

Quantitative /constant pressure

7

 Spindle motor

Frequency inverter/ Servo

8

 Mini feeding unit

0.1um

9

Spindle motor

7.5Kw

10

Spindle speed

80-1500r/min

11

Spindle number

2

12

Workpiece stations number

Translation axis

13

Machine dimenstion

3400×3200×5840 mm

14

Machine weight

10 T
