Product Introduction

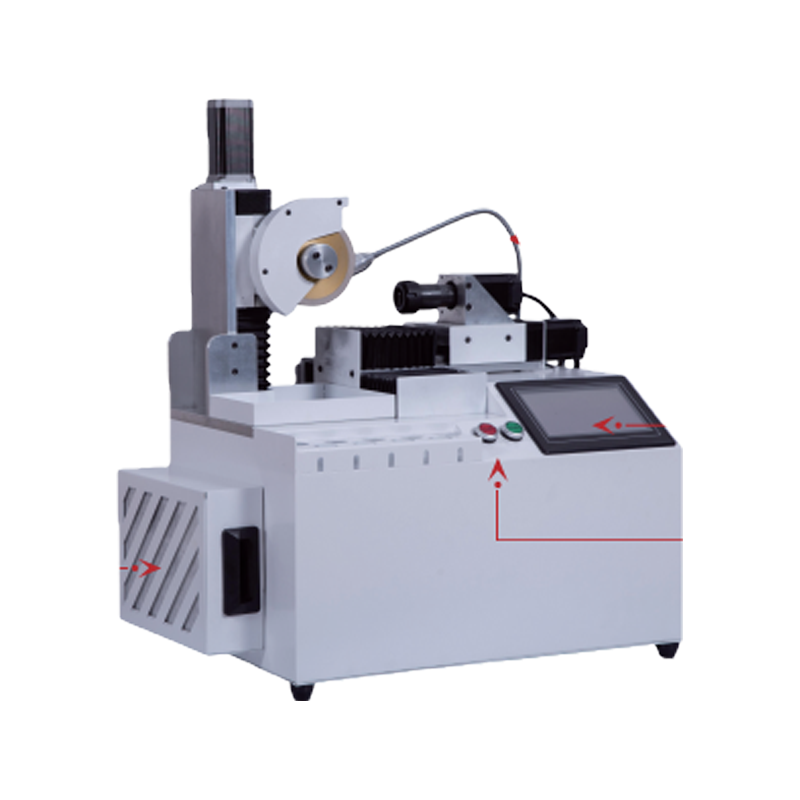

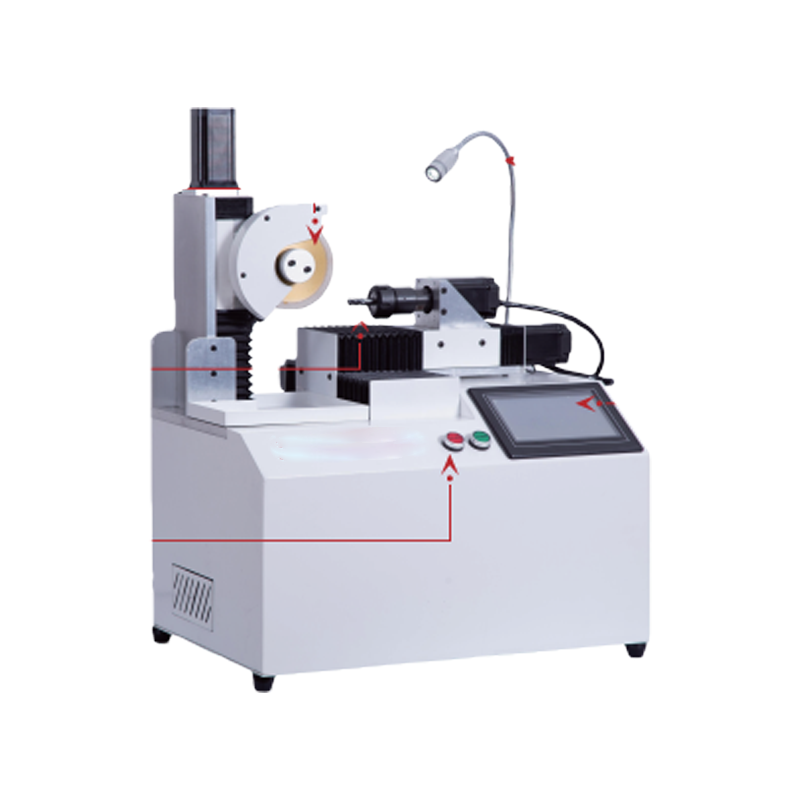

Tkm-Zn Series Grinding Machine
Core advantages
Our grinding machine series products have been successfully used in mold processing, precision instruments, mechanical processing, second-hand tools, textiles, Printing, fiber, forestry, plastics, wood and many other industries, and is also used in aerospace blade processing, new energy vehicles In high-end fields such as battery pole cutting, we provide stable tool grinding solutions for more than 200 companies. The stability of the product wins the trust of users. Recognition and trust, we will provide the world with more intelligent, efficient and advanced knife sharpeners in the future, and build itself into a A global leader in the knife sharpening market.

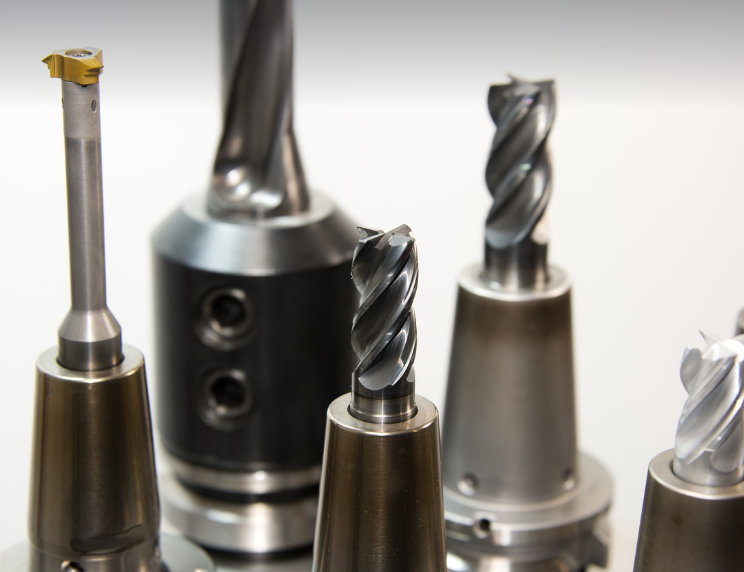

Applicable tools
Flat milling cutter Circular milling cutter Ball-end knife Chamfering knife drill head
Specification
|
NO
|
ITEM
|
TKM-ZN3.0
|
|
1
|
Rated voltage
|
220V/50HZ
|
|
2
|
Total power
|
1.5kw
|
|
3
|
Computer control
|
High efficiency, high precision, automatic blade alignment
|
|
4
|
Sharpening efficiency
|
1 min-2 min/branch
|
|
5
|
Grinding wheel life
|
8 mm milling cutters 1500-2000 pieces
|
|
6
|
General replacement grinding wheel specifications
|
32*124*10(inner hole*outer diameter"thickness)
|
|
7
|
Grinding range
|
4mm-20mm, 2/3/4/5/6 blades
|
|
8
|
Spot drill
|
6mm/10mm/12mm
|
|
9
|
Tungsten carbide drill application range
|
4mm-20mm
|
|
10
|
Grinding efficiency
|
300-400 pieces
|
|
11
|
weight
|
48kg
|
|
12
|
Product appearance
|
600 mm *420 mm *800 mm
|

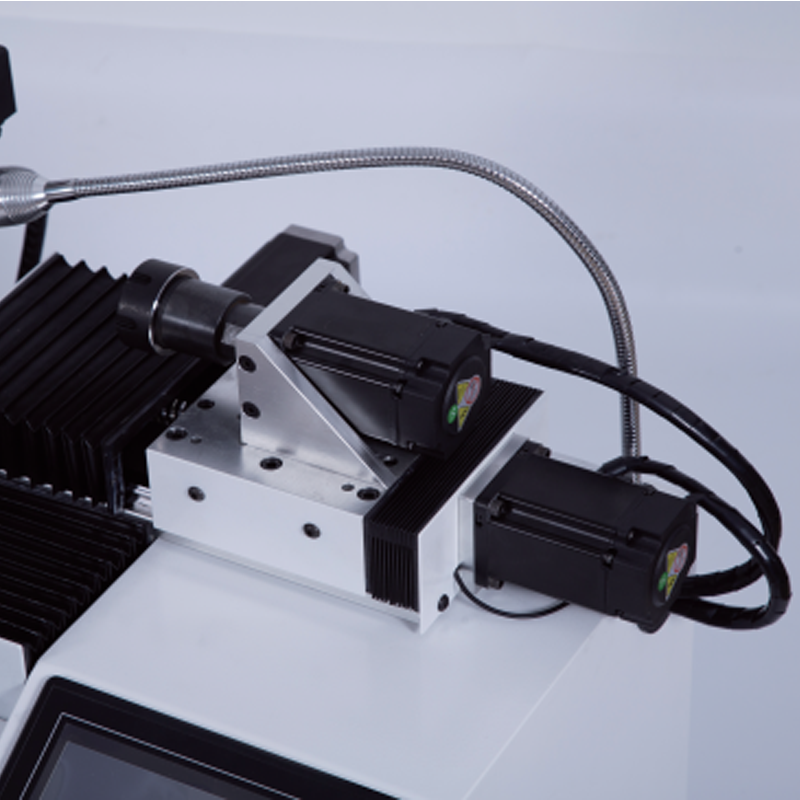

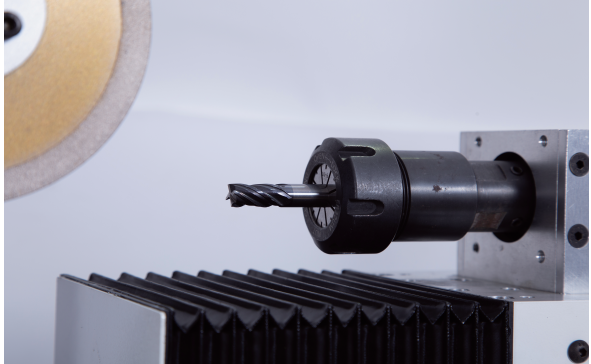

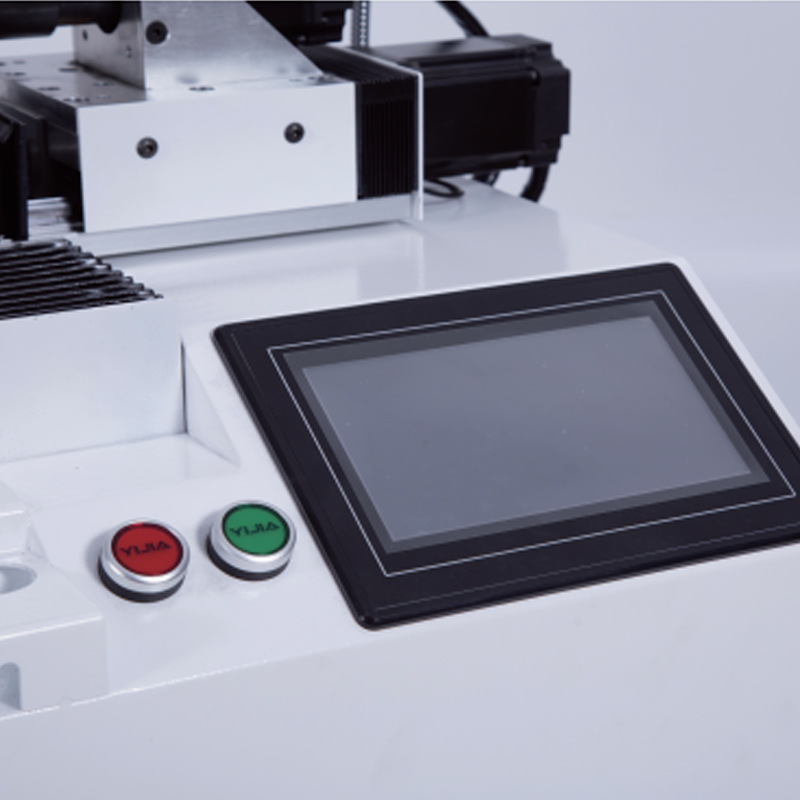

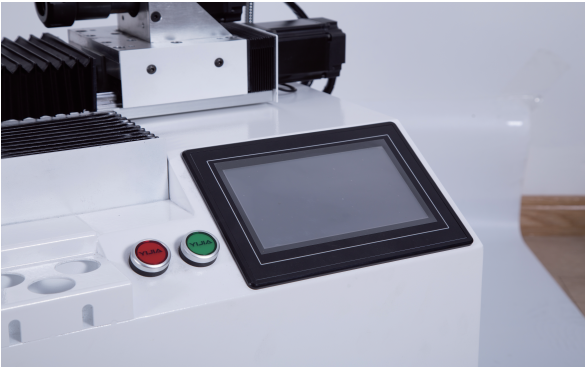

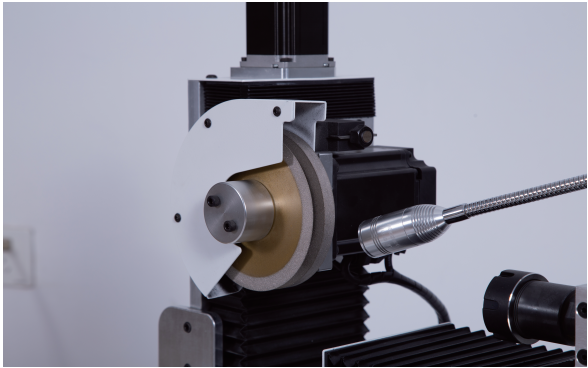

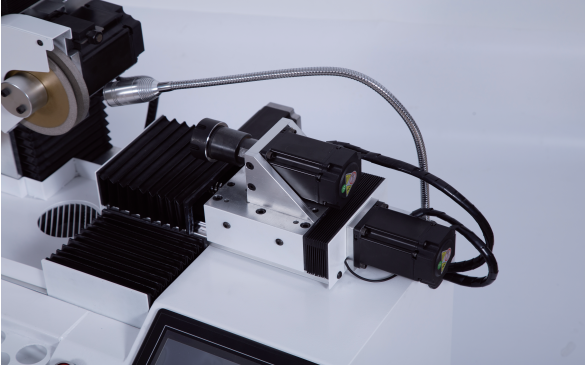

Product details display
