Product Introduction
Product Description

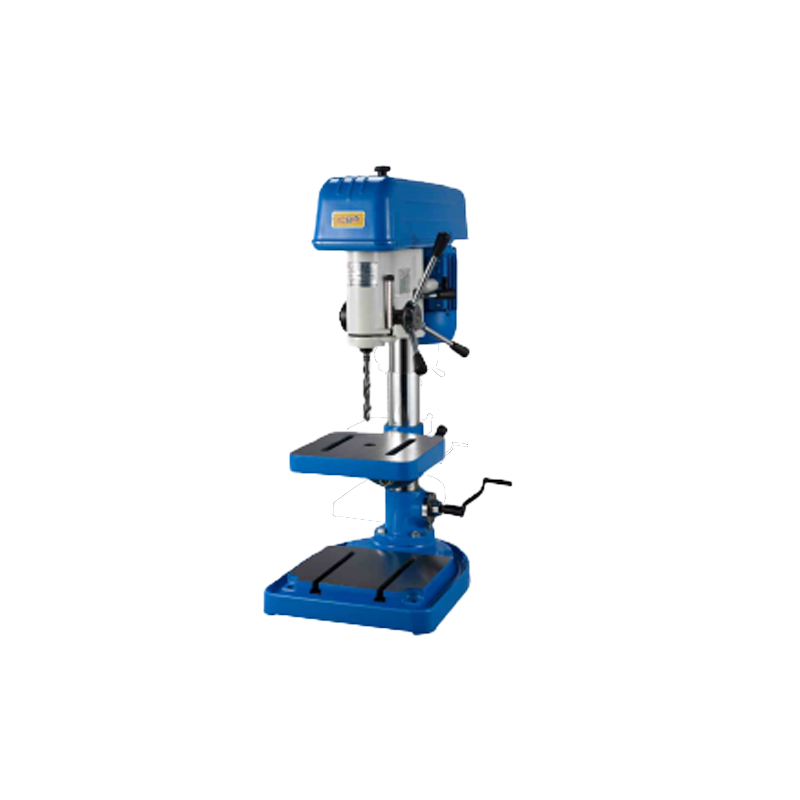

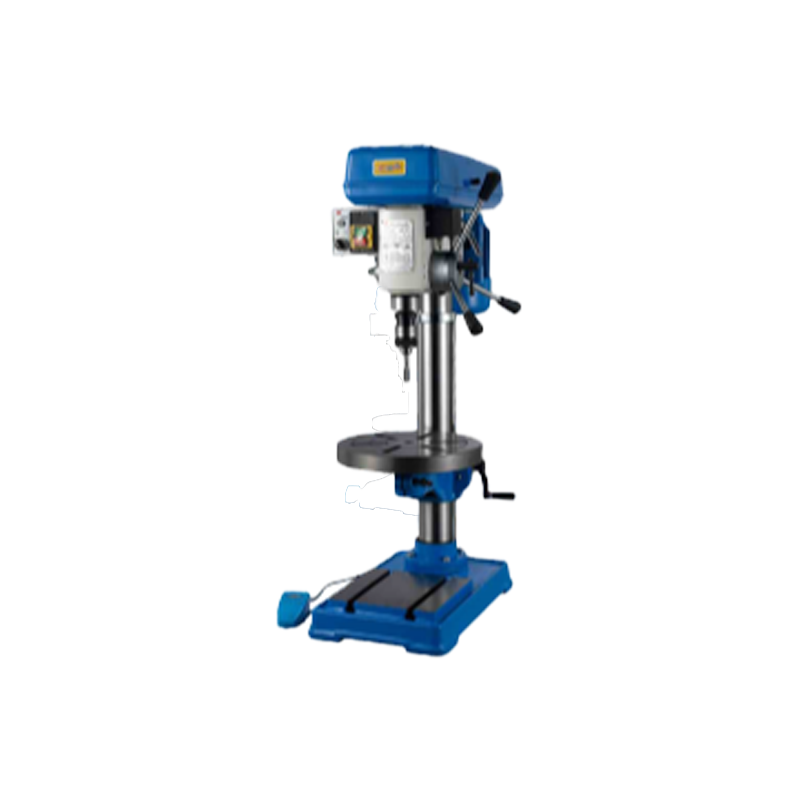

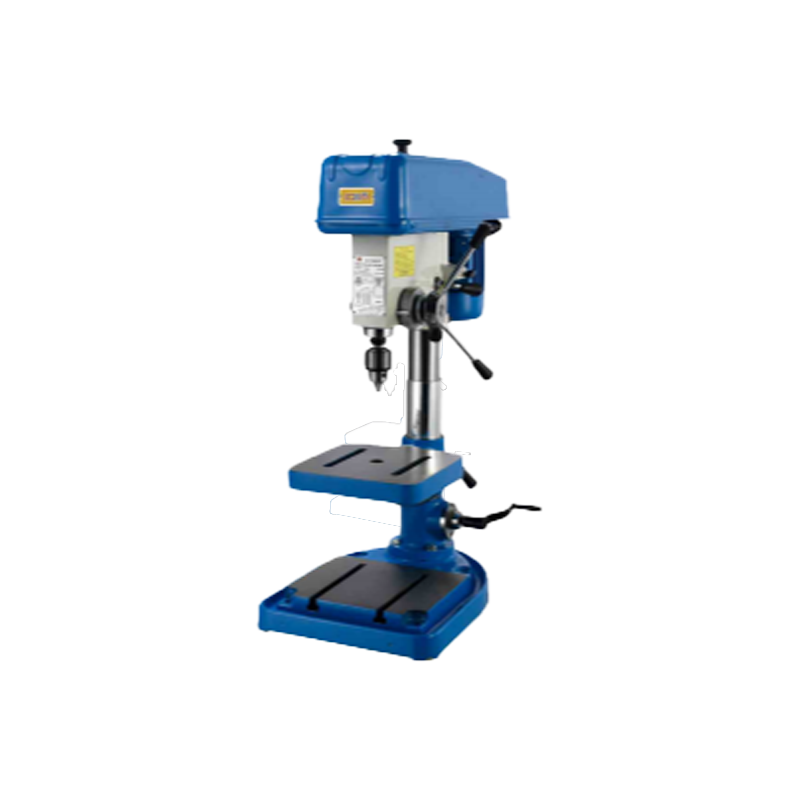

Table drilling machines are smaller ones than other type drilling machines , are widely used in small and normal drilling processing .
The bench table drilling machines could work on many flat tables in home , workshops, factories .
Bench table drilling machines have column , drilling head could use drilling chuck to drill or tap bores in workpieces . The control is manual , but one people could use this type machine with easy working .
For more models, please contact us!
Specification
|
NO
|
Model
|
Z516B
|
Z512-2A
|
ZQ4113
|
ZQ4116
|
SWJ-6
|
SWJ-12
|
SWJ-6B
|
SWJ-10B
|
|
1
|
Max Tapping capacity
|
16mm
|
12.7mm
|
13mm/-
|
16mm/-
|
cast iron 6mm
medium carbon steel 5mm |
cast iron 12mm
medium carbon steel 8mm |
6mm
|
10mm
|
|
2
|
Spindle stroke
|
100mm
|
100mm
|
85mm
|
85mm
|
40mm
|
45mm
|
40mm
|
40mm
|
|
3
|
Spindle taper
|
MS.2
|
B16
|
B16
|
MS.2
|
B12
|
B16
|
B12
|
B16
|
|
4
|
Spindle speed
|
480,800,1400, 2400,4100r/min |
480,800,1400, 2400,4100r/min |
450-2650r/min
|
5-speed: 400-2420r/min
12-speed270-2880r/min |
480,850
|
260,440,750
|
350,520,820,1300
|
250,480,800
|
|
5
|
Spindle to table the largest distance
|
362mm
|
332mm
|
315mm
|
422mm
|
295mm
|
290mm
|
--
|
--
|
|
6
|
Max.Distance spindienose to table
|
586mm
|
556mm
|
475mm
|
592mm
|
388mm
|
380mm
|
75-300mm
|
75-300mm
|
|
7
|
Distance spindie axis to coulumn surface
|
193mm
|
193mm
|
180mm
|
180mm
|
127mm
|
127mm
|
127mm
|
127mm
|
|
8
|
Spindle sleeve bottom size(die x length)
|
62×25mm
|
50×18mm
|
62×22mm
|
62×23mm
|
--
|
--
|
--
|
--
|
|
9
|
Spindle extension
|
10mm
|
44.5mm
|
32mm
|
32mm
|
--
|
--
|
--
|
--
|
|
10
|
The coumn diameter
|
85mm
|
70mm
|
70mm
|
70mm
|
60mm
|
60mm
|
50mm
|
50mm
|
|
11
|
Work table size
|
265×265mm
|
265x265mm
|
240x240mm
|
240×240mm
|
196x196mm
|
230x230mm
|
200×200mm
|
200×200mm
|
|
12
|
The base work surface size
|
250x300mm
|
250×300mm
|
220×220mm
|
220×220mm
|
166x166mm
|
180x200mm
|
--
|
--
|
|
13
|
Electrical Appliances
|
550W1400r/min
|
370W1400r/min
|
370W1400r/min
|
370W1400r/min
|
370W
|
370Wor 550W
|
370W
|
550W
|
|
14
|
G.W/N.W
|
110/100kg
|
110/100kg
|
60/55kg
|
60/55kg
|
52/45kg
|
61/54kg
|
68/60kg
|
88/80kg
|
|
15
|
Packing size
|
78x45x95cm
|
78x45x95cm
|
92×52x28cm
|
92x52x28cm
|
64×44x91cm
|
64x44×91cm
|
60x41×75cm
|
60x41×75cm
|

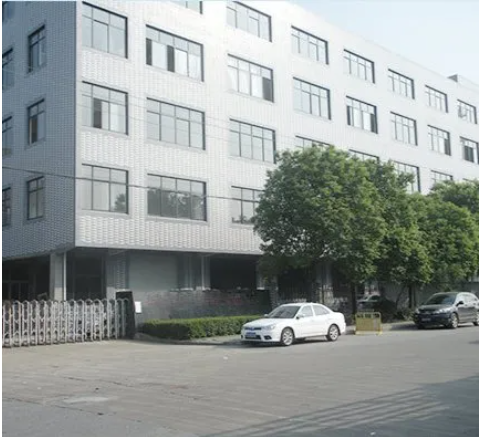

Our factory is a professional manufacturer of intelligent precision drilling machines, intelligent precision tapping machines, intelligent precision drilling and tapping integrated machines, vertical drilling machines, tapping machines, drilling and tapping dual-purpose machines, automatic feed drilling machines, automatic tapping machines, vertical drilling machines, light bench drills, automatic hydraulic drills, milling and drilling machines, and other related products. Located on the beautiful shores of West Lake, our factory boasts a pleasant environment, advanced processing equipment and strong technical capabilities, and comprehensive testing methods.
As a dynamic enterprise in the industry, we actively seek partnerships and continuously learn. We fully absorb existing experience in the industry both domestically and internationally, learning from strengths and overcoming our weaknesses; we are committed to innovation and dedicating our energy to product development and customer service.
