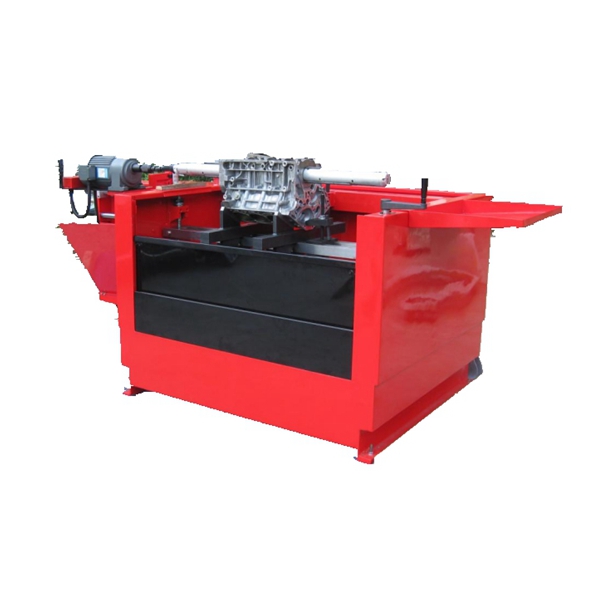

LBH-100 Horizontal Linear Boring Honing Machine

NO

Items

Description

1

Working diameter range

Ф46~Ф178 mm

2

Spindle speed

150 rpm

3

Power of spindle motor

1.5 KW

4

Power of cooling oil pump

0.12 KW

5

Working cavity (L * W * H)

1140*710*710 mm

6

Physical dimensions of the machine (L * W * H)

3200*1480*1920 mm

7

Max. stroke length of the spindle

660 mm

8

Min. amount of coolant

130  L

9

Max. amount of coolant

210  L

10

Machine weight（without load）

670 kg

11

Gross weight of the machine

800 kg
