Product Introduction

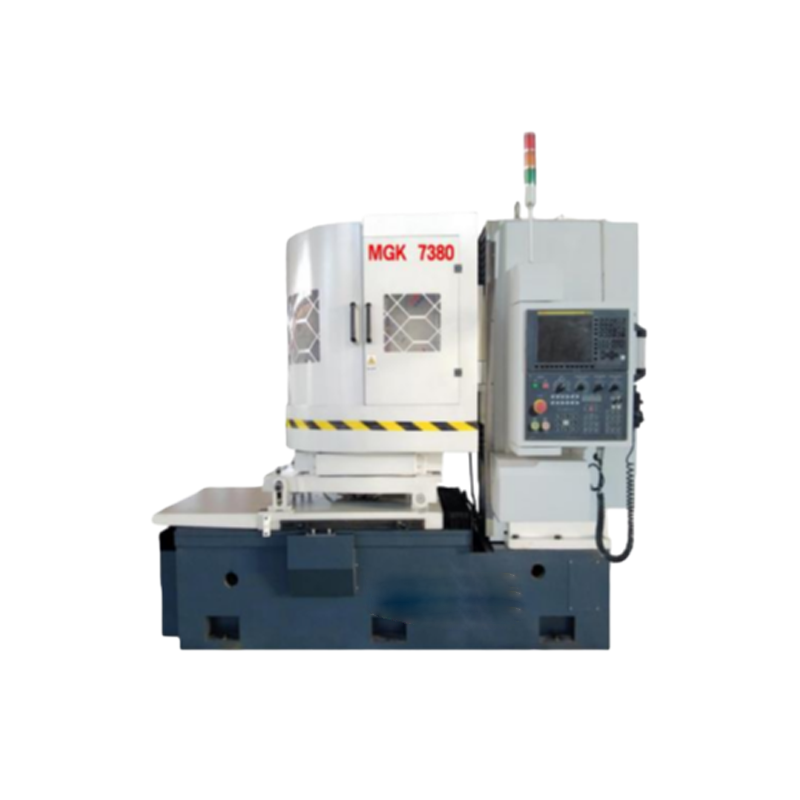

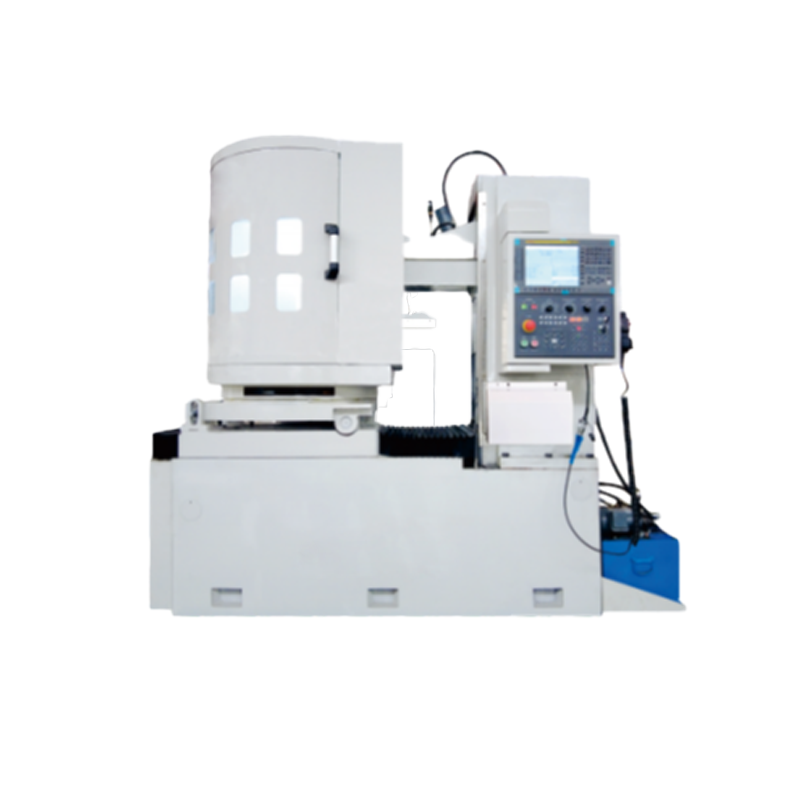

Horizontal Spindle Rotary Table Surface Grinder
|
NO
|
Item
|
MGK-7340
|
MGK-7380
|
|
1
|
Worktable diameter
|
Φ400mm
|
Φ800mm
|
|
2
|
Electromagnetic chuck diameter
|
Φ400mm
|
Φ800mm
|
|
3
|
Maximum size of grindable workpiece (diameter × height)
|
Φ400×120 mm
|
Φ800×320 mm
|
|
4
|
Maximum load capacity
|
≥200kg
|
≥800kg
|
|
5
|
Workbench tilt angle
|
±3
|
±3
|
|
6
|
Table rotation speed (continuously variable speed )
|
60-180 r/min
|
12-70 r/min
|
|
7
|
Longitudinal reciprocating speed of the worktable slide
|
1.5–4 m/ min
|
1.5–3 m/min
|
|
8
|
Maximum longitudinal reciprocating movement of the worktable slide
|
245mm
|
470mm
|
|
9
|
Grinding head spindle speed
|
1450 r/min
|
1450 r/min
|
|
10
|
Maximum vertical movement of the grinding head
|
150 mm
|
350 mm
|
|
11
|
Vertical rapid lifting speed of the grinding head
|
300 mm/ min
|
300 mm/min
|
|
12
|
Vertical automatic feed rate of grinding head
|
0.001-3mm
|
0.001-0.03mm
|
|
13
|
Electronic handwheel feed rate
|
X1X10X100
|
X1X10X100
|
|
14
|
Grinding wheel dimensions (outer diameter × width × inner diameter)
|
300×40× 127 mm
|
450 × 50 × 203 mm
|
|
15
|
Total motor power
|
11KW
|
22KW
|
|
16
|
External dimensions (length × width × height)
|
1965 × 1000 × 1950 mm
|
15KW 1450 r /min
|
|
17
|
Product weight (gross weight/net weight )
|
3000/2600 kg
|
1.3KW
|
Grinding Cases

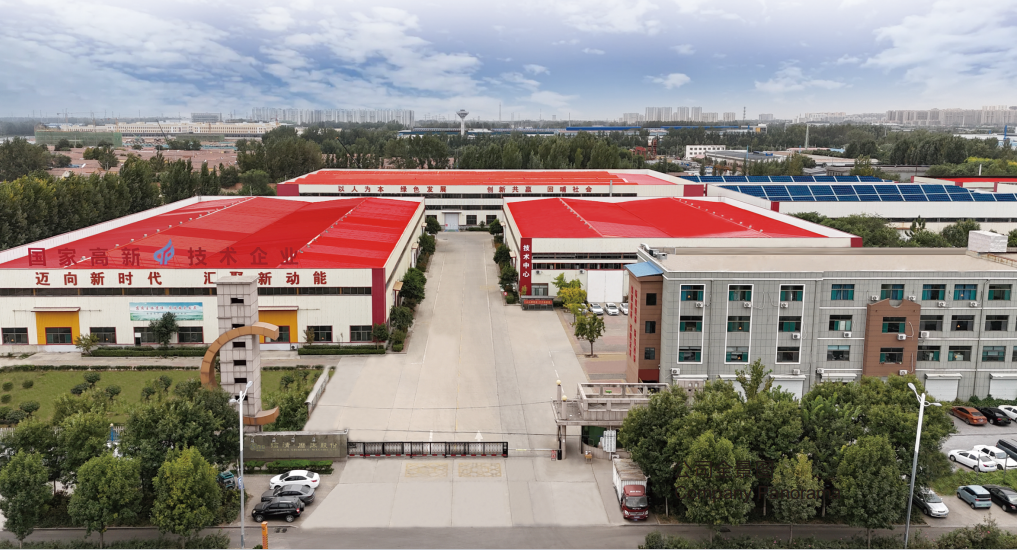

The company has strong technical strength, more than 40 years of experience in the design and manufacturing of circular grinding machine precipitation, large physical factory production base, and continue to carry out industry-universityresearch cooperation with top domestic universities, while carrying out joint research and development with well-known foreign companies. The products meet the requirements of the EU CE certification
standard, have passed ISO9001 and ISO14001 quality system certification, and replace imported grinding machines in the high-end manufacturing field, focusing on the research and development of precision grinding
equipment,key functional components and cutting-edge,grinding technology.
